Home>CARBON WHEELSET>KUNG GAN WHEELSET>KUNG NEW GAN DISC PLUS CARBON WHEELS / Vacuum compatible, lighter and better!

KUNG NEW GAN DISC PLUS CARBON WHEELS / Vacuum compatible, lighter and better!

US$ 0.00
Adding to cart succeed
KUNG NEW GAN DISC PLUS CARBON WHEELS / Vacuum compatible, lighter and better!
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

Detail

  • Product Name: KUNG NEW GAN DISC PLUS CARBON WHEELS / Vacuum compatible, lighter and better!
  • Item NO.: 8831460
  • Weight: 1 kg = 2.2046 lb = 35.2740 oz
  • Category: CARBON WHEELSET > KUNG GAN WHEELSET
  • Brand: KUNG
  • Creation Time: 2021-11-25



KUNG GAN系列,推出全新升级版——性能PLUS:全新外观、真空兼容、陶瓷轴承、SAPIM辐条,更轻重量……超高性价比之选!

KUNG GAN series, launched a new upgraded version-Performance PLUS: new appearance, vacuum compatibility, ceramic bearings, SAPIM spokes, lighter weight... Super cost-effective choice!




KUNG GAN 50-DISC PLUS,入门的最佳选择!

KUNG GAN 50-DISC PLUS, the best choice for getting started!



这次,除了50mm框高的巡航版本,40mm框高的综合型版本也同步上市。

This time, in addition to the cruise version with a frame height of 50mm, a comprehensive version with a frame height of 40mm is also launched simultaneously.





KUNG GAN 40-DISC PLUS




KUNG GAN DISC PLUS

轮组参数:

Wheel parameters

型号KUNG GAN 50-DISC PLUS、KUNG GAN 40-DISC PLUS

版本兼容开口胎、真空胎

框高50mm框高版本、40mm框高版本

重量1630g±2%(50框高)、1480g±2%(40mm框高)

材料T700、H-MOD高模量碳纤维

技术VPT PLUS层叠技术

表面处理:哑光,亮光黑标

最大宽度:28.1mm

轮框内宽:21mm

辐条:比利时SAPIM

辐条数:24、后24

刹车系统:Center-lock

编织:前、后交叉

花鼓:KUNG 高精度陶瓷轴承花鼓

开档:100×12mm,142×12mm筒轴

塔基:SHIMANO/SRAM 11速塔基(XDR 12速塔基可选配)

配件:胎垫

Model: KUNG GAN 50-DISC PLUS, KUNG GAN 40-DISC PLUS

Version: Compatible with clincher, tubeless

Frame height: 50mm frame height version, 40mm frame height version

Weight: 1630g±2% (50 frame height), 1480g±2% (40mm frame height)

Material: T700, H-MOD high modulus carbon fiber

Technology: VPT PLUS Laminate Technology

Finish: Matte, Glossy Black Label

Maximum width: 28.1mm

Wheel frame inner width: 21mm

Spoke: Belgian SAPIM

Number of spokes: 24 front, 24 rear

Brake system: Center-lock

Weave: front and back cross

Hub: KUNG high-precision ceramic bearing hub

Open file: 100×12mm, 142×12mm thru-axle

Freewheel: SHIMANO/SRAM 11-speed freewheel (XDR 12-speed freewheel is optional)

Accessories: tire pads





真空兼容

Vacuum compatible

KUNG GAN DISC PLUS 采用全新真空胎床设计,胎床经过精确计算和测试,无论是开口胎,还是真空胎都可以实现便捷安装、快速充气;全面提升使用体验。

KUNG GAN DISC PLUS adopts a new tubeless bed design. The tire bed has been accurately calculated and tested. Whether it is a clincher tire or a tubeless tire, it can be easily installed and quickly inflated; it can comprehensively improve the user experience.







真空体验近在咫尺——贴上真空胎垫,即可实现开启真空胎高品质骑行路感体验!

The vacuum experience is close at hand - attach the tubeless tire pad, and you can realize the high-quality riding experience of the tubeless tire!




更轻、更快

lighter and faster

KUNG GAN DISC PLUS采用独到的VPT PLUS碳纤维层叠技术,在上一代的基础上,对轮圈碳纤维结构和材料进行全面升级,大大降低轮圈重量,让你骑行的脚感更轻、更快!

KUNG GAN DISC PLUS adopts the unique VPT PLUS carbon fiber lamination technology. On the basis of the previous generation, the carbon fiber structure and material of the rim are fully upgraded, which greatly reduces the weight of the rim and makes your riding feel lighter and faster!








更润、更快

Smoother and faster

KUNG 高精度陶瓷轴承花鼓,提供超高润度,加速、巡航、遛车,快人一步!

KUNG high-precision ceramic bearing hubs provide ultra-high lubrication, accelerating, cruising, walking the car, one step faster!







外观全面提升

Overall appearance improved

全新KUNG  GAN DISC PLUS  采用中高端轮组常用的哑光表面,及亮光标外观设计,配车和谐、百搭。

The new KUNG GAN DISC PLUS adopts a matte surface commonly used in mid-to-high-end wheel sets, and a bright cursor design, which is harmonious and versatile with the car.





同时,工艺全面提升,细节更细致,更显高端大气。

At the same time, the craftsmanship has been comprehensively improved, the details are more detailed, and the high-end atmosphere is more visible.




刚硬、耐用毫不妥协

Rigid and durable without compromise

KUNG  GAN DISC PLUS  依然采用比利时SAPIM辐条,前、后各24根辐条交叉编组,确保绝对的侧向刚性和耐用性。

KUNG GAN DISC PLUS still uses Belgian SAPIM spokes, with 24 front and rear spokes cross-grouped to ensure absolute lateral rigidity and durability.






更宽更气动、更舒适

Wider, more aerodynamic and more comfortable

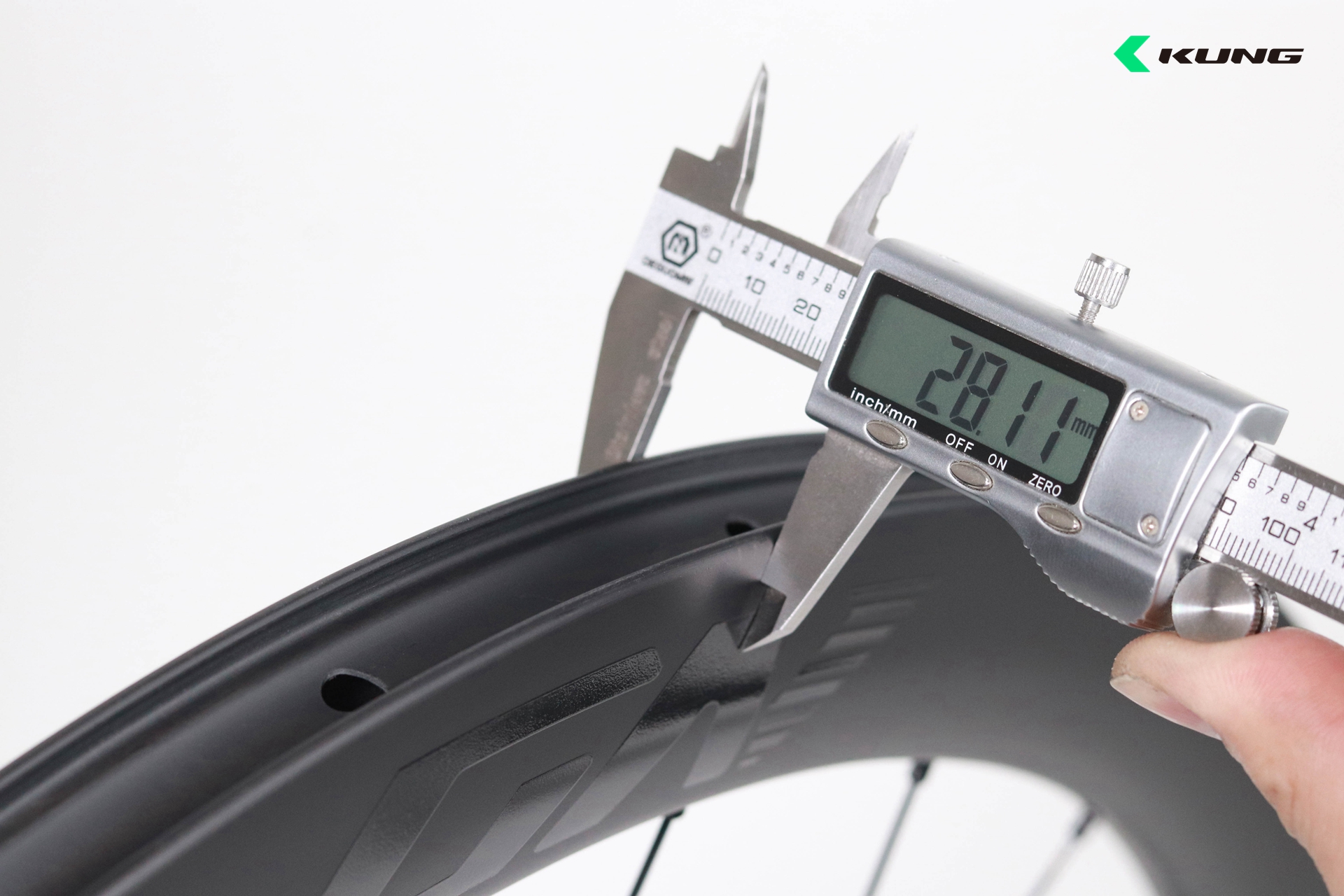

KUNG  GAN DISC PLUS  系列均采用 28.1mm外宽胖圈,整体更气动;抗侧风性能更佳。同时,内宽采用21mm宽度,骑行舒适性更佳。

The KUNG GAN DISC PLUS series all use a 28.1mm outer wide fat ring, which is more aerodynamic overall and has better crosswind resistance. At the same time, the inner width is 21mm for better riding comfort.






性价比超高

High cost performance

延续GAN系列市场定位,依然以“全民”碳刀作为目标:

品质:非常棒——GREAT

价格:容易接受——ACCEPTABLE

定位:大家所需要的——NEED

Continuing the market positioning of the GAN series, still targeting the "all people" carbon knives:

Quality: Excellent - GREAT

Price: easy to accept - ACCEPTABLE

Positioning: what everyone needs - NEED








TIPS:真空胎的优势

Advantages of Tubeless Tire


兼容真空胎,没有内胎结构,除了重量更轻,内部填充的空气也可以更多,弹性更好,舒适性更佳。真空胎除了优越的舒适性,还拥有更低的滚阻,更高的驱动效率。

Tubeless compatible, no inner tube structure, in addition to being lighter, it can also fill more air inside, with better elasticity and better comfort. In addition to superior comfort, tubeless tires also have lower rolling resistance and higher drive efficiency.



另外,真空胎还容许使用更低胎压,让外胎与路面拥有更好的侧向抓地力,大大提升过弯的安全性能,让你信心满满。即使穿孔无法修补,塞进一条内胎,即可继续骑行。

In addition, the tubeless tire also allows the use of lower tire pressure, so that the tire and the road have better lateral grip, greatly improving the safety performance of cornering, making you full of confidence. Even if the puncture can't be repaired, tuck in a tube and you're ready to ride.





Use Google Translate, please correct me if I am wrong.


Note: We believe buying a frame is a service as much as a product. To ensure you receieve the best service, please send us a message before ordering so we can discuss size, fit, compatibility, colour options, etc. We're availible during Chinese working hours via our website's "Live Chat" feature and out of hours you can leave us a message there and we'll get back to you. Alternatively, send us an email.
